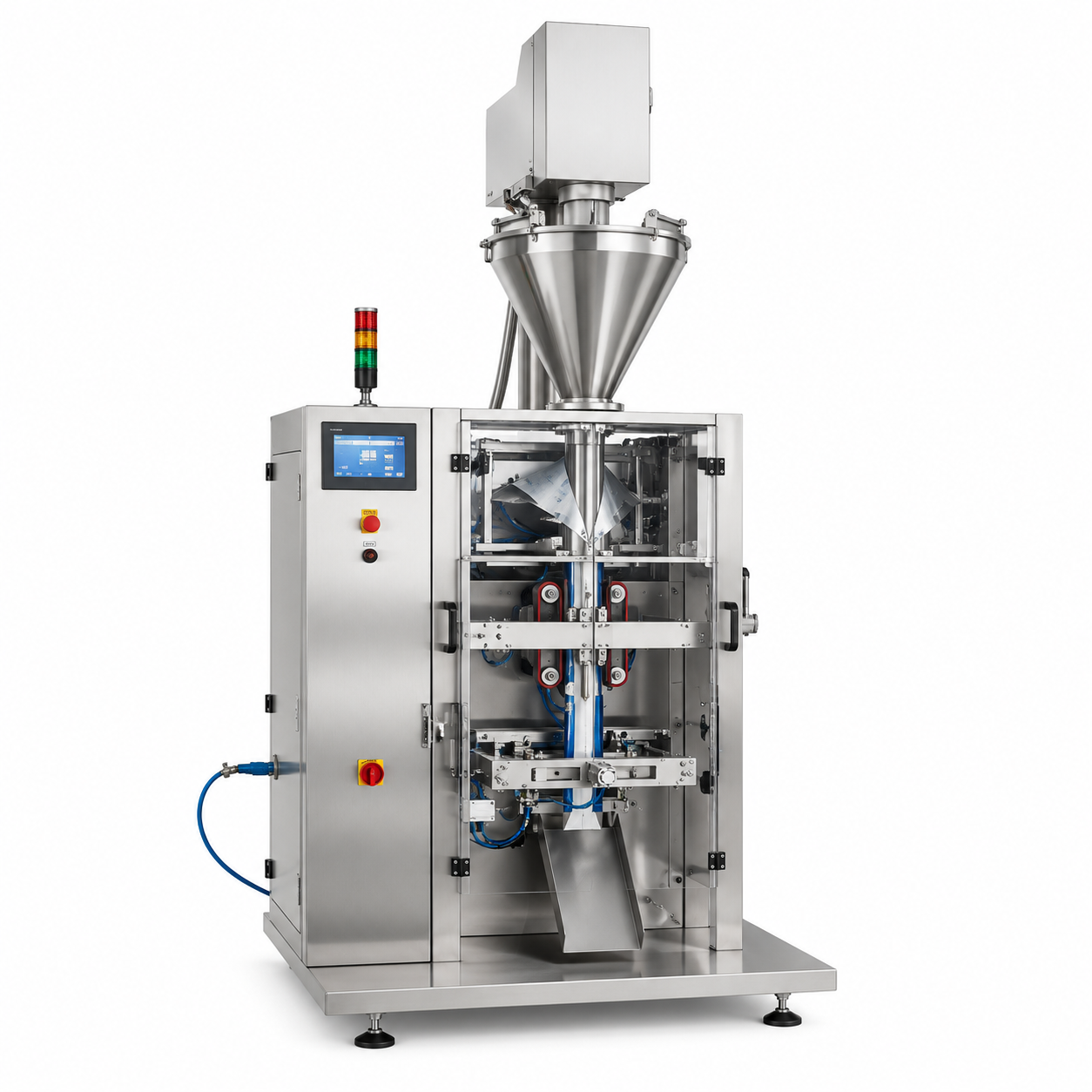

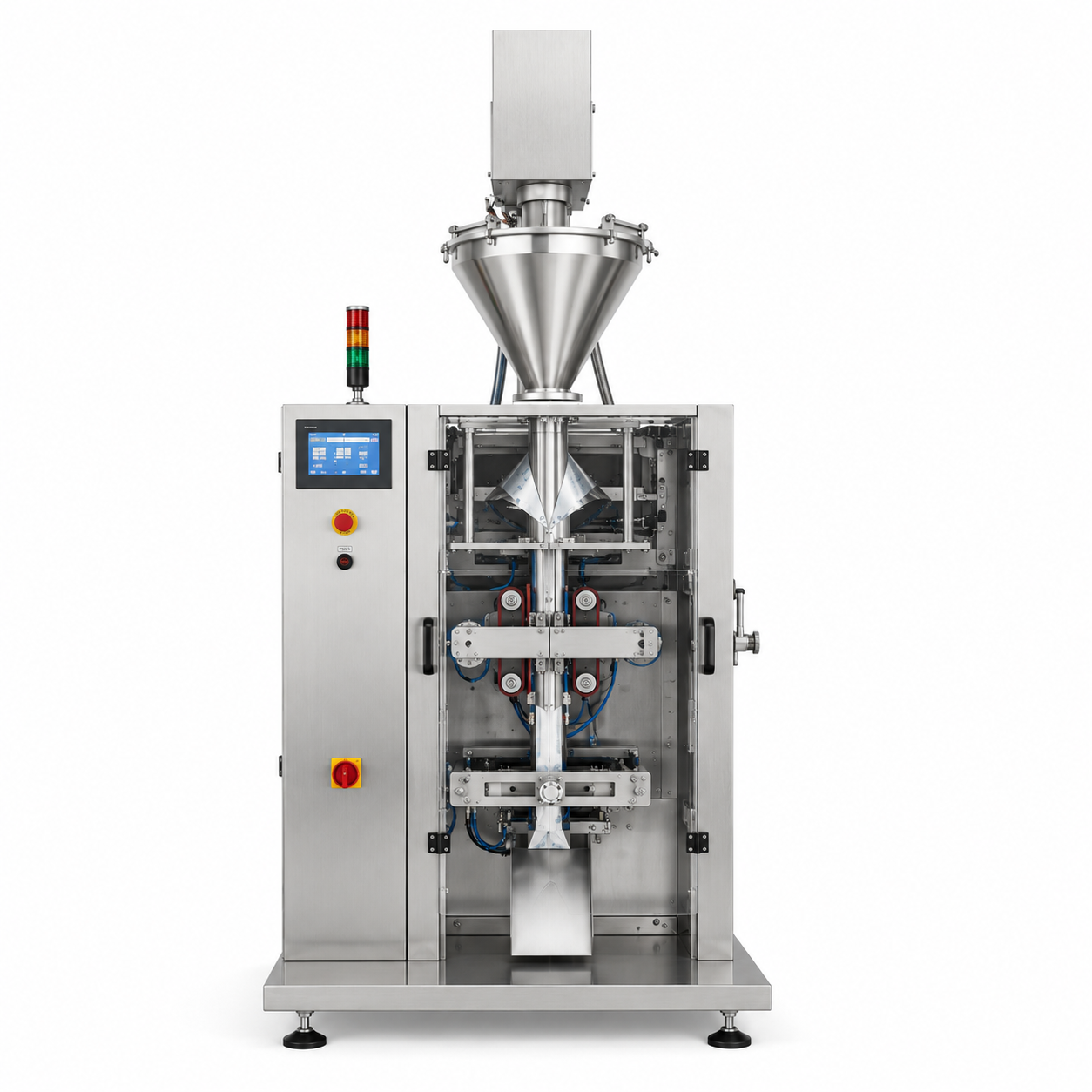

BESAN/SATTU PACKAGING MACHINE | AUTOMATIC COLLAR TYPE AUGUR FILLER PACKAGING MACHINE HEXA 450

Category: MINI COLLAR TYPES WITH SERVO AUGUR FILLER MACHINE
Model Number : HT CT AF SERVO MINI
Application : Powder Spice
Filling System : Augur Filler SERVO TYPE

MACHINE NAME : Collar Servo af

PRODUCT NAME : Collar type Agar Filler Machine

Optional Features :N2 Flushing,Batch Coading System,Batch Cutting System

Qty to pack :  UP TO – 100 ppm

Motor : 3 hp

Range of qnty : UP TO 50 pouch/min

Speed : (Depents upon the quantity,nature of product)

Accuracry : 2% (nature of product)

Connected load : 5kw

Voltage : 440 V , 3 PHASE

Sealing details with make : 3 & 4 Side Sealing/Center

Cutter details : Plan Cutter & Zig zag Cutter

Warranty : 1 Year Macanical Body Parts

Material : All Contract Part SS304

Automatic pouch packing machine apt for mechanical cup filling machine product-Free flow Granuels,soyabari,gota spice,suji etc.The fully automatic form fill and sealing machine is an intermittent machine designed for the efficient packing of product in seal pouch upto 1000gms The machine is versatile and can be easily changed over from one pouch size to another vertical seale.

THIS MODEL IS BEST FOR SINGLE SIZES WITHIN 100 GM FOR ANY POWDER
