AUTOMATIC COLLAR TYPE AUGUR FILLER PACKAGING MACHINE OCTA 450

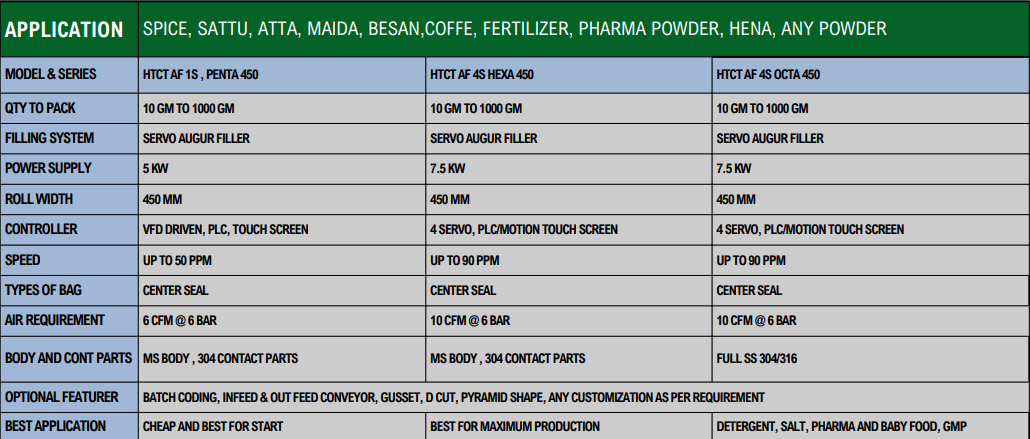

MACHINE NAME: AUTOMATIC COLLAR TYPE AUGUR FILLER PACKAGING MACHINE OCTA 450

MODEL NO:   HTCT AF OCTA 450

APPLICATION: SPICE, SATTU, ATTA, MAIDA, BESAN, COFFE, FERTILIZER, PHARMA POWDER, HENA, ANY POWDER

QTY TO PACK:  10 GM TO 1000 GM

SPEED:  UP TO 90 PPM

FILLING SYSTEM:  SERVO AUGUR FILLER

CONTROLER: 4 SERVO, PLC/ MOTION TOUCH SCREEN

MOTOR: 2 HP

POWER SUPPLY: 7.5 KW

VOLTAGE: 220V AC

ROLL WIDTH: 450 MM

SEALING DETAILS: CENTER SEALING

CUTTER DETAILS: PLAN CUTTER & ZIG ZAG CUTTER

WARRANTY: 1 YEAR MECHANICAL BODY PART

MATERIAL: FULL SS 304/316

OPTIONAL FEATURES: BATCH CODING, INFEED & OUT FEED CONVEYOR, GUSSET, D CUT, PYRAMID SHAPE, ANY CUSTOMIZATION AS PER REQUIREMENT

Automatic pouch packing machine apt for mechanical cup filling machine product-Free flow Granuels,soyabari,gota spice,suji etc.The fully automatic form fill and sealing machine is an intermittent machine designed for the efficient packing of product in seal pouch upto 1000gms The machine is versatile and can be easily changed over from one pouch size to another vertical seale.
