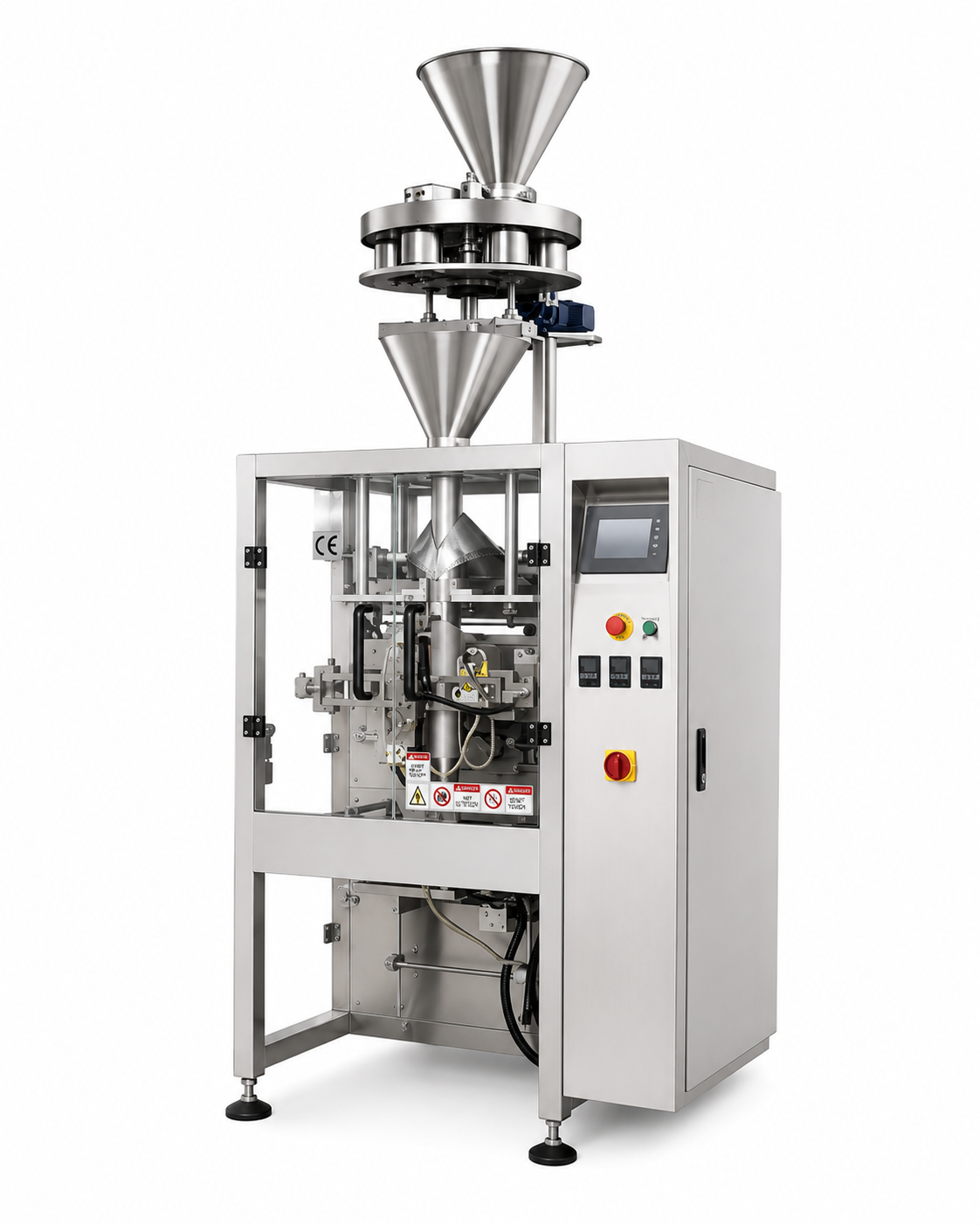

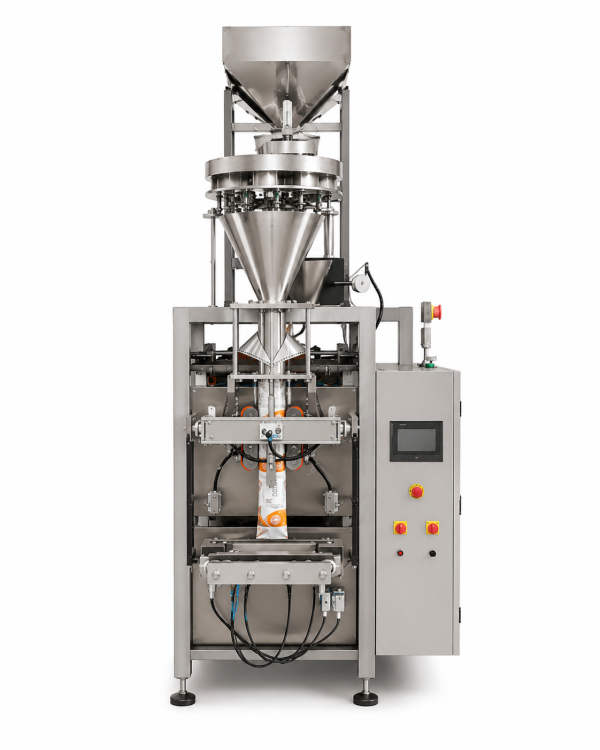

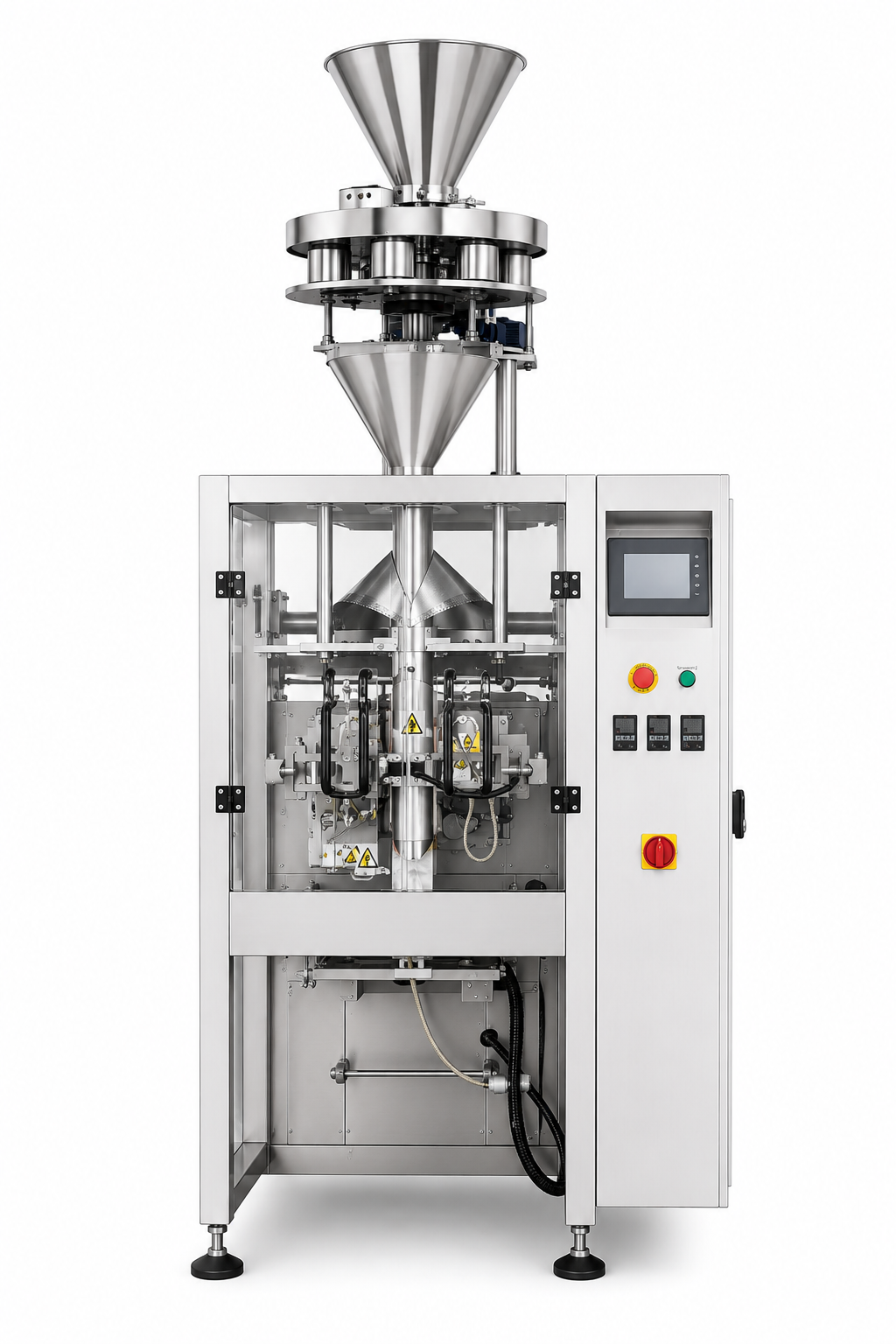

GROCERY ITEM | AUTOMATIC COLLAR TYPE CUP FILLER PACKAGING MACHINE HEXA 450

MACHINE NAME: COLLAR TYPE POUCH PACKAGING MACHINE

MODEL NO:   HTCT CUP 4S HEXA 450

PRODUCT NAME : SOYABARI/ NAMKEEN/ FRYUM/ PULSES/ TEA ANY FREE FLOW ITEM

QTY TO PACK :  10GM TO 1000 GM

SPEED :  UP TO 90PM

MOTOR : 2 HP

POWER SUPPLY : 7.5 KW

ACCURACY : 2% (NATURE OF PRODUCT)

VOLTAGE : 220V AC

SEALING DETAILS WITH MAKE : CENTER SEALING

ROLL WIDTH : 450 MM

AIR REQIREMENT : 10 CFM @ 6 BAR

CUTTER DETAILS : PLAN CUTTER & ZIG ZAG CUTTER

WARRANTY : 1 YEAR MECHANICAL BODY PART

MATERIAL : MS BODY, FULL 304 CONTACT PARTS

OPTIONAL FEATURES : BATCH CODING, INFEED & OUT FEED CONVEYOR, GUSSET, D CUT, PYRAMID SHAPE, ANY CUSTOMIZATION AS PER REQUIREMENT

Automatic pouch packing machine apt for mechanical cup filling machine product-namkeen,chipes,basen,sattu, etc.The fully automatic form fill and sealing machine is an intermittent machine designed for the efficient packing of product in seal pouch upto 250gms The machine is versatile and can be easily changed over from one pouch size to another vertical seale.
